Standard or higher

Barcode labels with imported data

How to print labels with imported data e.g. from a spread sheet

ActiveBarcode: Barcode labels with imported data
1

In this example we use data from a column of a spreadsheet to print labels:

ActiveBarcode: Barcode labels with imported data

2

The data from the column "code" should serve as a data source for the labels. To use them, we copy these data into the windows clipboard. Mark the data you would like to use first:

ActiveBarcode: Barcode labels with imported data

3

Now copy the selected data into the windows clipboard. For this use the function "Copy" out of the menu "Edit" of the spreadsheet software:

ActiveBarcode: Barcode labels with imported data

4

Next open the ActiveBarcode Generator. If you not yet adjusted the label sheet type you use, select "Setup label sheet" from menu "Print" first.

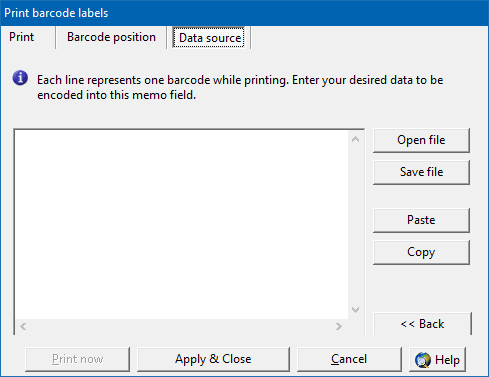

Now select the function "Labels containing barcodes" from menu "Print". Click on the tab "Data source". The following dialog box appears:

ActiveBarcode: Barcode labels with imported data

5

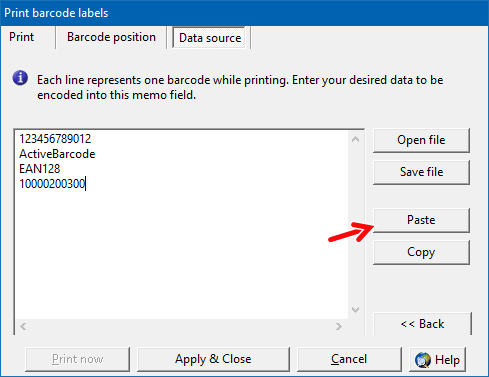

Clicking on the "Paste" button here. The data copied out of the spreadsheet is inserted now into the data source for the labels.

ActiveBarcode: Barcode labels with imported data

6

Now you can change optionally to the "Barcode position" tab in order to change the position and the size of the barcode on the label.

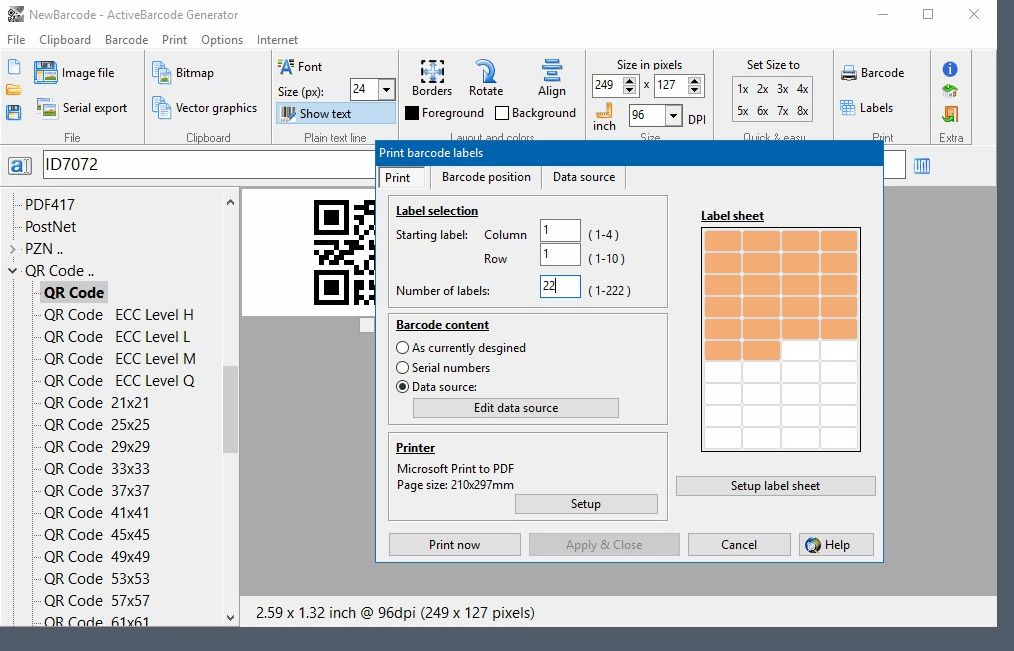

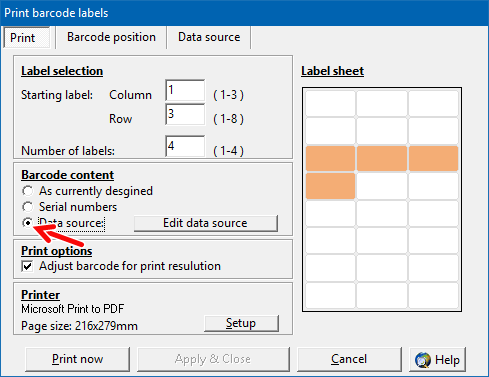

For starting the print, you change now to the tab "Print". Have a look at the "Barcode content" and select "Data source" here. Also select the starting label and the amount of labels.

ActiveBarcode: Barcode labels with imported data

7

Finally hit the "Print" button to launch the print of the labels.
