Barcode objects in a document


Embed and automate a barcode in a Word document
Word 365, 2021, 2019, 2016, 2013, 2010

InfoAn Add-In for Word 2010 or newer is available. This makes working with barcodes much easier. See this step-by-step tutorial for the Word Add-in.

A short description of how to add a barcode to a Word document: First launch Word and create a new document or open an already existing document.

Make sure that you have configured your Word, that the "Developer" tab is shown in the ribbon. If not, go to the Word Options: Click here on the tab "File". With it you change to the preventer view. Then click on "options" on the left:

Barcode, Word


Activate "Customize Ribbon" and then activate the option "Developer" inside the main tabs and then close the option window.

Barcode, Word

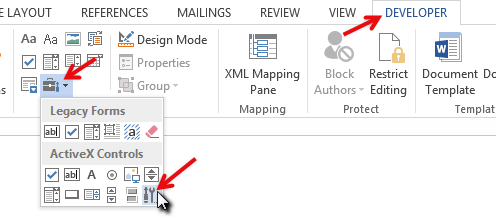

Now you can embed the ActiveBarcode control element into your Word Document. Select Developer tab. Click on the button "Legacy Tools" from the range of "Controls" and then select "More controls" there.

Barcode, Word


A dialog box appears on the screen:

Barcode, Word


Select "ActiveBarcode" now and click "Ok". Now a barcode will be created inside your document. This will be a standard barcode of EAN-128 type. This is the default type. You can change this to any barcode type supported by ActiveBarcode: QR Code, GS1/EAN-128, Data Matrix, GTIN/EAN-13, Code 39, Code 93, GS1-Data Matrix, Code 128, PDF417, DUN-14, EAN-8, EAN-14, EAN-18, ISBN, ITF-14, NVE, PZN8, SCC-14, SSCC-18, ...

Now you can modify this barcode. You can change the type, text, colors etc. For this click inside the barcode with the right mouse button. A pop up menu will open:

Barcode, Word


Select "ActiveBarcode-Object" and then "Properties...". The property dialog of ActiveBarcode will open. Here you can modify the barcode as you like.
